ES Elastomeric Firestop Sealant - 29 oz. - Red ES129

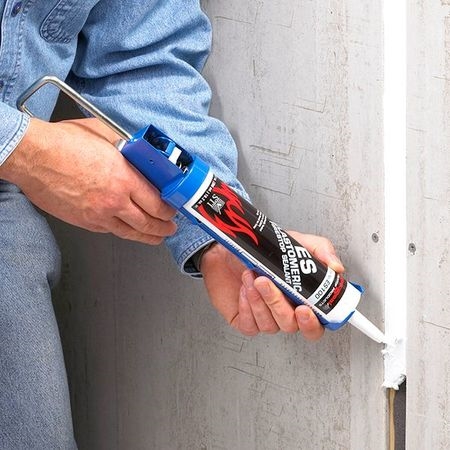

SpecSeal^® ES Sealant is a latex-based gun grade elastomeric firestop sealant designed for construction joint applications. Once cured, ES Sealant forms a flexible shield against the passage fire and smoke. In dynamic joint conditions, ES Sealant is tested to accommodate up to 25% compression/extension of the installed joint width.

• Highly elastomeric gun grade sealant
• Tested for up to 4 Hour fire resistance rating when tested to ASTM E1966/UL 2079.
• Can be sanded and painted to match its surroundings
• Listed in over 45 UL^® Tested Construction Joint Systems

Features & Benefits

• Elastomeric – allows movement.
• Water-based – easy installation, clean up and disposal.
• Auto-bonding – fresh material adheres to previously installed product
• Compatible with AS Spray for applications or repairs.
• Safe – low VOCs, no solvents, non-halogenated.
• Water-resistant – will not re-emulsify when dry.
• Acoustically tested – reduces noise transmission.

Applications

• Control/expansion joints.
• Slab edge conditions.
• Head of wall – concrete fluted and slab.
• Bottom of wall-deck to gypsum wall.
• Joints and gaps in sound barriers.

FIRE CAULK

SERIES ES ELASTOMERIC SEALANT
Technical Service 1-800-992-1180 1
www.stifirestop.com
APPLICATIONS PRODUCT DESCRIPTION
PERFORMANCE
FIG. 1: EXAMPLE OF MAINTAINING STC
VALUES OF WALL AND CREATING AN
EFFECTIVE SOUND BARRIER
FIG. 2: RECOMMENDED JOINT DESIGNS -
AVOIDING THREE-POINT ADHESION
• Water-Based for easy installation and cleanup.
• Non-halogenated.
• Thixotropic for high-build application.
• Auto bonding.
• Safe... No solvents! No asbestos!
• Elastomeric!
• Water-Resistant!
• UL Classified.
• Acoustical sealant
• Paintable
FEATURES
PRODUCT DATA SHEET
PHYSICAL PROPERTIES
SpecSeal® Elastomeric Sealant is designed
primarily for the protection of construction joints.
SpecSeal® Elastomeric Sealant is a non-halogenated latex-based, highly elastomeric caulk
designed to provide passive smoke and fire protection in construction joints. This material is also
designed to restore sound attenuation properties to sound-rated ceilings and partitions.
SpecSeal® Elastomeric Sealant is engineered to adhere to virtually all construction surfaces
and may be applied using standard caulking equipment or by troweling. SpecSeal® Elastomeric
Sealant dries to form a flexible shield against the propagation of fire. Its premium latex binder
system is totally resistant to water and will not re-emulsify after drying. SpecSeal® Elastomeric
Sealant contains no inorganic fibers, asbestos, or solvents.
When applied to a wet film thickness of 1/4" (6.3 mm) to 1/2" (12.5 mm) over appropriate backing materials,
SpecSeal® Elastomeric Sealant has been successfully tested in one, two, three and four hour joints when
tested in accordance with UL2079 (ASTM E1966) and CAN/ULC S115. All tested systems have been cycled
500 times at total movement up to + 25%. Consult factory for individual system designs and application
requirements. LIMITATIONS: Use product as per manufacturer’s instructions. Use only in applications
per the manufacturer’s tested and published designs or per specific recommendations. End user must
ultimately determine the suitability of the product and designs to his specific requirement and assumes
responsibility for its use.
STI Product Data Sheet • ES Elastomeric Sealant • FOD-5032 2506
Table A:
PRODUCT NAME Series ES
Color Pale Blue or Red
Odor Mild Latex
Density 10 Lb/Gal (1.19 kg/L)
Solids 66%
pH 7.5
Solids Content By Weight 81%
Solids Content By Volume 71.5%
In-Service Temp. <185°F (85°C)
Storage Temp. 40°F (4°C) - 95°F (35°C)
Flame Spread 5*
Smoke Development 5*
Movement ±25%**
Solvent Content None
Drying Time Tack Free 2 HoursA
Dry through 5 to 7
daysA
STC Rating 62
(Relates to specific construction)
(ASTM E 90-04/ASTM C919)
Shelf Life 2 yrs
VOC 43 g/L
* Tested to ASTM E84 (UL723) at 14% surface
**500 Cycles per UL2079, AC30 (ICBO) and ASTM E1399
ADependent on temperature and humidity
SpecSeal® ES Elastomeric Sealant
Fill, Void or Cavity Material CERTIFIED FOR
USE IN JOINT-SYSTEMS. SEE UL ONLINE
CERTIFICATIONS DIRECTORY.
Arrows show path of sound travel
Backer Rod Bond Breaker Tape
Sealant Sealant
In the example shown above, sealant is applied (over foam
backer rod) flush with wall surface. Back rod provides a
release surface allowing sealant to contract after drying to the
recommended hour glass cross-sectional profile.
This example illustrates sealant applied to the three planes.
Bond breaker tape is applied to one surface to prevent threepoint
adhesion, eliminating stress on joint as sealant dries and
enhancing movement capabilities.
Sealant reduces sound transmission by
blocking path of sound travel
2 Technical Service 1-800-992-1180
www.stifirestop.com
INSTRUCTIONS
FIG. 3: HEAD-OF-WALL JOINT - GYPSUM WALLBOARD WALL TO CONCRETE FLOOR
FIG. 4: HEAD-OF-WALL JOINT - GYPSUM WALLBOARD WALL CUT TO FIT CONTOURS OF
STEEL DECK
FIG. 5: HEAD-OF-WALL JOINT - GYPSUM WALLBOARD WALL TO CONCRETE OVER STEEL
DECK
GENERAL: Areas to be protected must be clean and
free of oil, loose dirt, rust or scale. Recommended
storage and application temperatures range between
40°F (4°C) and 95°F (35°C). When applying product
at the lower end of the temperature range, warming
the material to 70°F (21°C) will enhance drying
characteristics. Drying time will vary according
to prevailing temperature and humidity. Allow to
thoroughly dry before exposure to moisture.
Consult appropriate manufacturer’s drawing for
system design requirements. Forming or packing
materials may be required as an integral part of
various system designs. See Table B for estimation
information.
Sealant is auto-bonding and may be applied in
stages. DO NOT ATTEMPT TO THIN PRODUCT
BY ADDING WATER.
THIS PRODUCT IS DESIGNED FOR
PROFESSIONAL INSTALLATION ONLY. This
sealant is designed to contract while drying. Proper
joint design is critical to sealant performance. Avoid
three point adhesion through the use of appropriate
backing or bond-breaking materials.
See Figure 2 for recommended joint designs.
Consult ASTM C1193 Standard Guide for Use of
Joint Sealants for additional guidelines concerning
the proper application of sealant materials.
STI Product Data Sheet • ES Elastomeric Sealant • FOD-5032 2506
SPECIFICATIONS
The fire protective sealant shall be a waterbased,
non-halogenated, elastomeric and
shall contain no solvents, inorganic fibers,
nor asbestos. The sealant shall dry to form
a flexible, moisture resistant seal and shall
adhere to all common construction surfaces.
The sealant shall have demonstrated sound
attentuation properties. The approved sealant
shall be SpecSeal® Elastomeric Sealant.
SPECIFIED DIVISIONS
DIV. 7 — 07 84 00 Firestopping
DIV. 7 — 07 84 43 Fire Resistant Joint Sealants
MAINTENANCE
Inspection: Installations should be inspected
periodically for subsequent damage. Following
safety precautions listed in Precautionary Information
and pertinent installation guidelines, remove coating
in damaged areas down to undamaged material.
Reapply fresh coating material to original coating
thickness.
UL System No. HW-D-0079
Assembly Rating – 1 & 2 Hr • Movement Capabilities: 25% Compress.
Nominal Joint Width: 3/4˝ • Forming Material: In 1 hr walls, apply bond breaker tape to ceiling track.
Sealant Depth: 5/8˝ depth on both sides.
UL System No. HW-D-0103
Assembly Rating – 1 & 2 Hr • Movement Capabilities: 25% Compress.
Nominal Joint Width: 3/4˝ • Forming Material: In 1 hr walls, apply bond breaker tape to ceiling track.
Sealant Depth: 1/2˝ depth on both sides.
UL System No. HW-D-0034
Assembly Rating – 1 & 2 Hr • Movement Capabilities: ±25% Compress/Extend.
Nominal Joint Width: 1˝ • Forming Material: Nom 4 pcf mineral wool to full depth.
Sealant Depth: 1/2˝ depth on both sides.
Technical Service 1-800-992-1180 3
www.stifirestop.com
FIG. 6: HEAD-OF-WALL JOINT - MASONRY WALL TO CONCRETE
OVER STEEL DECK
UL System No. HW-D-0039
Assembly Rating – 2 Hr
Movement Capabilities: ±25% Compress/Extend.
Nominal Joint Width: 1˝
Forming Material: Nom 4 pcf mineral wool to full depth.
Sealant Depth: 1/4˝ depth on both sides.
FIG. 7: HEAD-OF-WALL JOINT - MASONRY WALL TO CONCRETE
FLOOR
UL System No. HW-D-0041
Assembly Rating – 3 Hr
Movement Capabilities: ±12.5% Compress/Extend or 25% Compress.
Nominal Joint Width: 1˝ or 3/4˝ (See System).
Forming Material: Optional foam backer rod.
Sealant Depth: 1˝ or 1/2˝ (See System) on both sides.
FIG. 8: FLOOR-TO-FLOOR JOINT - CONCRETE FLOOR TO
CONCRETE FLOOR
UL System No. FF-D-0005
Assembly Rating – 3 Hr
Movement Capabilities: ±12.5% Compress/Extend
Nominal Joint Width: 1˝
Forming Material: Optional foam backer rod.
Sealant Depth: 1/2˝ top and bottom.
FIG. 9: FLOOR-TO-WALL JOINT - CONCRETE FLOOR TO \CONCRETE
WALL
UL System No. FW-D-0005
Assembly Rating – 3 Hr
Movement Capabilities: ±12.5% Compress/Extend
Nominal Joint Width: 1˝
Forming Material: Optional foam backer rod.
Sealant Depth: 1/2˝ top and bottom.
FIG. 10: FLOOR-TO-FLOOR JOINT - CONCRETE FLOOR TO
CONCRETE FLOOR
UL System No. FF-D-1008
Assembly Rating – 3 Hr
Movement Capabilities: ±15% Compress/Extend
Nominal Joint Width: 4˝
Forming Material: Nom 4 pcf mineral wool to 4˝ depth.
Sealant Depth: 1/2˝ depth of sealant.
FIG. 11: FLOOR-TO-WALL JOINT - CONCRETE FLOOR TO
CONCRETE WALL
UL System No. FW-D-1007
Assembly Rating – 3 Hr
Movement Capabilities: ±15% Compress/Extend
Nominal Joint Width: 4˝
Forming Material: Nom 4 pcf mineral wool to 4˝ depth.
Sealant Depth: 1/2˝ depth of sealant.
STI Product Data Sheet • ES Elastomeric Sealant • FOD-5032 2506
4 Technical Service 1-800-992-1180
www.stifirestop.com
IMPORTANT NOTICE: All statements, technical information, and recommendations contained herein are based upon testing believed to be reliable, but the accuracy and completeness thereof is
not guaranteed.
LIMITED WARRANTY: STI warrants that its products will be free of defects for one year from the date of purchase. In the event a product does not conform to this warranty, the sole and
exclusive remedy is, at STI’s option, replacement of the product or refund of the purchase price. The warranty provided herein shall be void and of no effect in the event that the product is
not installed in accordance with STI’s published instructions, listed systems and applicable building and safety codes. THIS WARRANTY IS IN LIEU OF ALL OTHER REPRESENTATIONS
AND EXPRESSED OR IMPLIED WARRANTIES (including the implied warranties of merchantability or fitness for a particular use) AND UNDER NO CIRCUMSTANCES SHALL STI BE
LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING, WITHOUT LIMITATION, ANY LOSS OF REVENUE,
PROFIT OR USE. Prior to use, the user shall determine the suitability of the product for its intended use, and the user assumes all risks and liability for subsequent use. No person other
than an officer of STI is authorized to bind STI to any other warranty for any product for which this warranty is issued.
MADE IN THE USA – COPYRIGHT © 2016 SPECIFIED TECHNOLOGIES INC.
CITY OF NEW YORK MEA 290-98-M
AVAILABILITY
TECHNICAL SERVICE
PRECAUTIONARY INFORMATION
Specified Technologies Inc. provides toll
free technical support to assist in product
selection and appropriate installation
design. UL Systems, Material Safety Data
Sheets and other technical information is
available at the Technical Library at www.
stifirestop.com.
Consult Material Safety Data Sheet for additional information on the safe handling and disposal of this material. Wash areas of skin contact with soap and
water. Avoid contact with eyes. Apply in areas with adequate ventilation.
SpecSeal® Elastomeric Sealant is available from authorized distributors nationwide. Consult factory for the names and locations of the nearest sales
representatives or distributors.
Table B: PRODUCT ESTIMATION INFORMATION (Construction Joints)
JOINT PER 1/4” INSTALLED DEPTH PER 1/2” INSTALLED DEPTH PER 1” INSTALLED DEPTH
WIDTH CU IN/FT FT/GAL GAL/100 FT CU IN/FT FT/GAL GAL/100 FT CU IN/FT FT/GAL GAL/100 FT
0.5 1.5 154 .65 3 77.0 1.3 6 38.5 2.6
0.75 2.3 102 .95 4.5 51.3 1.9 9 25.7 3.9
1.0 3.0 77 1.3 6.0 38.5 2.6 12 19.3 5.2
1.5 4.5 51 2 9.0 25.7 3.9 18 12.8 7.8
2.0 6.0 38 2.6 12 19.3 5.2 24 9.6 10.4
2.5 8.0 31 3.3 15 15.4 6.5 30 7.7 13.0
3.0 9.0 25 3.9 18 12.8 7.8 36 6.4 15.6
3.5 11 22 4.6 21 11.0 9.1 42 5.5 18.2
4.0 12 19 5.2 24 9.6 10.4 48 4.8 20.8
5.0 15 15 6.5 30 7.7 13.0 60 3.9 26.0
6.0 18 12 7.8 36 6.4 15.6 72 3.2 31.2
ORDERING INFORMATION
SpecSeal® Elastomeric Sealant is available in caulk tubes, sausages and pails.
Cat. No. Description
ES100 10.1 oz. Tube (300 ml) 18.2 cu.in.
ES129 29.0 oz. Tube (858 ml) 52 cu.in.
ES120 20 oz. Sausage (592 ml) 36 cu. in.
ES105 5 Gal. Pail (19.0 liters) 1,155 cu.in.
STI Product Data Sheet • ES Elastomeric Sealant • FOD-5032 2506
Somerville NJ 08876 USA • Phone: 800.992.1180 • Fax: 908.526.9623
